Marconi 588

Marconi 588; Canadian Marconi Co. (ID = 573920) Radio Marconi 588; Canadian Marconi Co. (ID = 573921) Radio
Marconi 588; Canadian Marconi Co. (ID = 1532210) Radio Marconi 588; Canadian Marconi Co. (ID = 1532212) Radio
Use red slider bar for more.

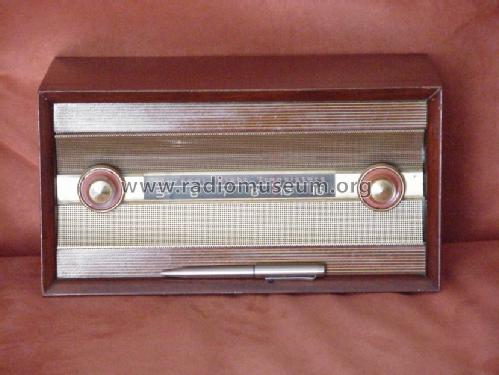

Marconi 588; Canadian Marconi Co. (ID = 573920) Radio
Canadian Marconi Co.: Marconi 588 [Radio] ID = 573920 830x623
Select picture or schematic to display from thumbnails on the right and click for download.
For model Marconi 588, Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC

Country:  Canada
Manufacturer / Brand:  Canadian Marconi Co. Ltd. (CMC, Esterline), Marconi's Wireless; Montreal, QC
alternative name

CMC Canada || Marconi, Canada
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 6x1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Marconi 588 - Canadian Marconi Co. Ltd. CMC,
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

Thanks to an agreement stipulated in 1954 with the Emerson Radio Export Corporation of New York, CMC acquired the right to use the Emerson licences to produce and to sell in Canada receivers with the brand Emerson. The Marconi 588 belongs to this period but I didn't find the corresponding Emerson model, so this could be even an original CMC project.

Available in Walnut, Mahogany and Limed Oak.

Mentioned in Marconi Transistor Radios (see Aldo Andreani's website).
Literature/Schematics (1) Antique Radio Magazine n.54, April 2003, page 56. Written in Italian and English.

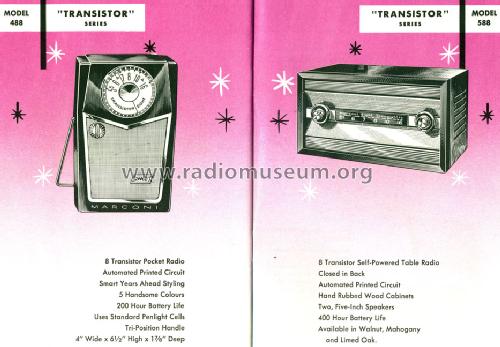

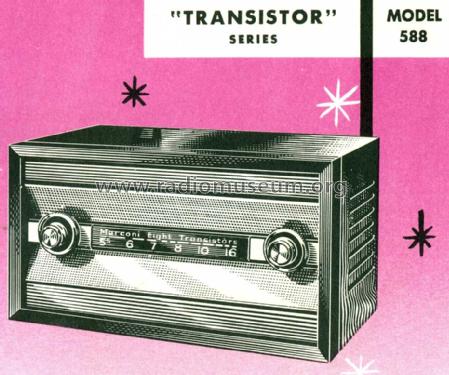

Literature/Schematics (3) The handsome line Marconi Booklet for 1959.

Model page created by Aldo Andreani. See "Data change" for further contributors.
