• Year
  • 1935/1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 148068

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • from Radiomuseum.org

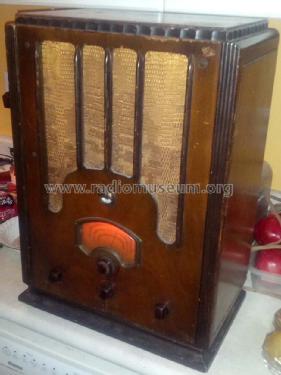

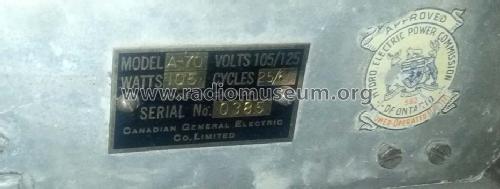

  • Model: A-70 - Canadian General Electric
  • Notes
  • The GE Table Model is known as A-70. Equivalent to RCA Victor Table Model T7-1 and RCA Victor Console Model C7-1. Schematic is common for all these 4 models, see RCC Victor-42.
  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Victor p.42
  • Author
  • Model page created by Ashis Mukerjea. See "Data change" for further contributors.
