- Country
- Canada
- Manufacturer / Brand
- Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
- Year
- 1946 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 191565
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / AC 25 Hz / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Power out
- 4.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: C353 R30049 - Canadian General Electric
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 26 x 33.5 x 14 inch / 660 x 851 x 356 mm
- Notes
-
The sticker in this model with the location of tubes shows the same for the models C352 and C353. We have not yet further information and therefore we can not distinguish these two models. We imagine that it is a question of the cabinet. 6V6 and 5Y3 can also be 6V6GT and/or 5Y3GT. The range is broadcast 540 - 1650 kc and SW 5.5 - 18 mc.

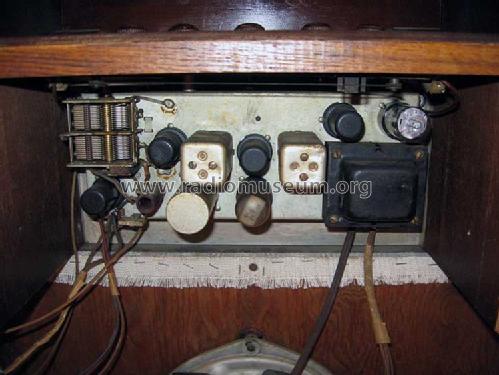

The cabinet was manufactured by Canada Cabinets and Furniture Ltd. The radio has a loop antenna mounted on the inside of the cabinet. The front of the receiver tilts out to access the controls, closes to hide them.
- External source of data
- Guest Sylvie Gilbert, Quebec, Canada
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
- Other Models
-
Here you find 505 models, 373 with images and 428 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
Collections
The model C353 is part of the collections of the following members.
