- Country
- Canada
- Manufacturer / Brand
- Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
- Year
- 1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 296451
From CGE 1945-49 service manual.

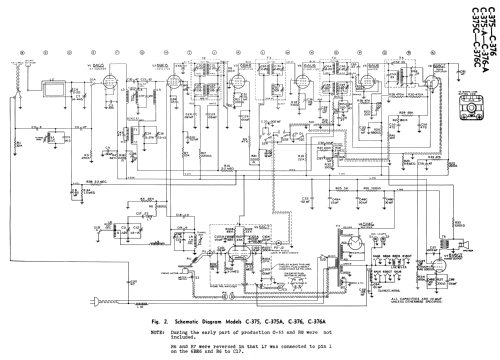

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 460/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 3 W (5.5 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: C-375C - Canadian General Electric
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 32 x 34 x 17 inch / 813 x 864 x 432 mm
- Notes
-
The Canadian General Electric model C-375C is a 9 tube AM/FM console radio with built in CP-12 VM407 automatic record changer. The player uses a magnetic pickup. For 25 or 60 Hz depending on nameplate rating.
The cabinet has a Walnut finish. The model C-376C is identical but has a Mahogany finish.
- Mentioned in
- General Electric Radio and Television Service Manual 1945-1949 (Page 168 to 174)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
