For model C-62, Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

Country:  Canada
Manufacturer / Brand:  Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: C-62 - Canadian General Electric
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 10.5 x 6.2 x 5.4 inch / 267 x 157 x 137 mm

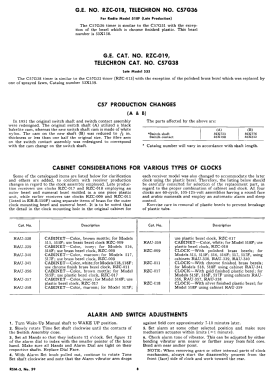

Mentioned in General Electric Radio and Television Service Manual 1945-1949 (Page 51-54)
Literature/Schematics (1) Radio College of Canada, Individual Circuit Service, 1927-1953

Model page created by Vitor Oliveira. See "Data change" for further contributors.
