• Year
  • 1948/1949
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 94581

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 115 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org

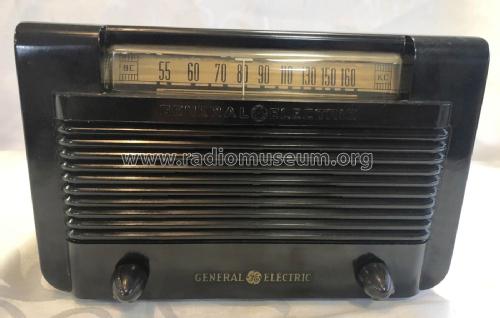

  • Model: CL-500 [Serial-# R45217 - R64235] - Canadian General Electric
  • Literature/Schematics (1)
  • Radio College of Canada, Individual Circuit Service, 1927-1953
  • Author
  • Model page created by Vitor Oliveira. See "Data change" for further contributors.
