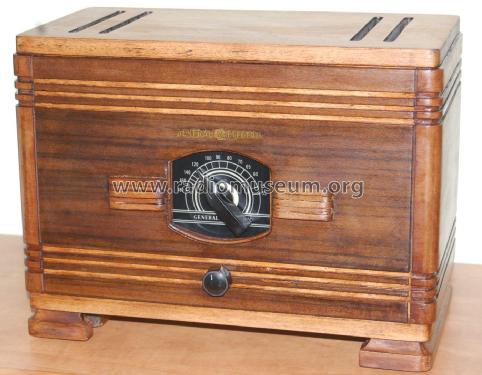

Canadian General: F-40 [Radio] ID = 939364 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model F-40, Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

Country:  Canada
Manufacturer / Brand:  Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6A7 6B7 41 1-V
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s); Reflex
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: F-40 - Canadian General Electric
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 12.75 x 9.5 x 6.75 inch / 324 x 241 x 171 mm
Notes The IF amplifier 6B7 is reflexed as the 1st audio stage.

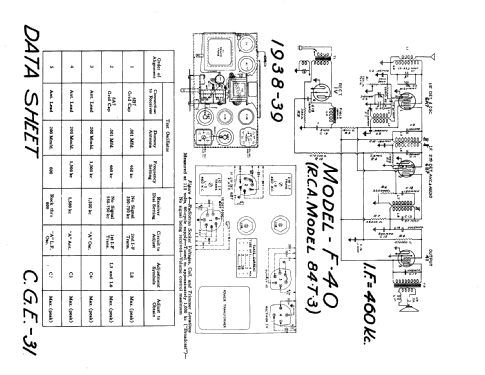

Literature/Schematics (1) Radio College of Canada, Individual Circuit Service, 1927-1953

Model page created by Vitor Oliveira. See "Data change" for further contributors.
