• Year
  • 1954 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 308918

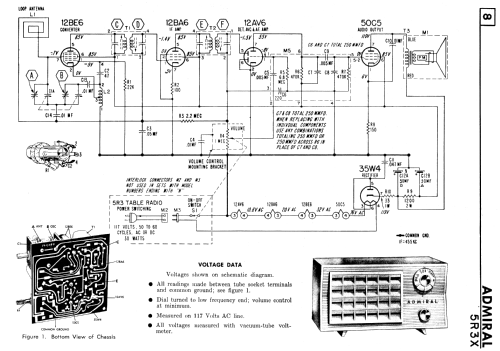

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 5R37X Ch= 5R3X - Canadian Admiral Co. Ltd; Long
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes

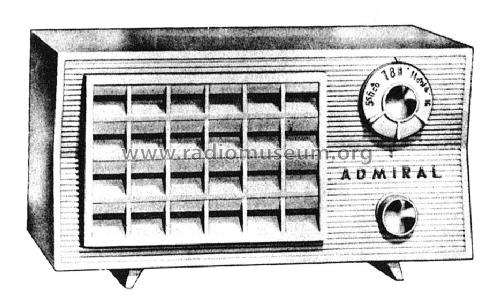

  • The Admiral model 5R37X is a 5-tube AC/DC table radio. Available in several colours.

    Model Colour
    5R31X Ebony
    5R32X Brown
    5R33X Ivory
    5R35X Red/White
    5R36X Turquoise/White
    5R37X Ebony/White
    5R38X Green
    5R39X Grey

    For an example of a similar USA model from the series see USA model 5R35.

  • Author
  • Model page created by Tom Seeger. See "Data change" for further contributors.
