HC4417X Ch= 6R2AXT

HC4417X Ch= 6R2AXT; Canadian Admiral Co. (ID = 2255007) R-Player

HC4417X Ch= 6R2AXT; Canadian Admiral Co. (ID = 2255008) R-Player
HC4417X Ch= 6R2AXT; Canadian Admiral Co. (ID = 2255009) R-Player
Use red slider bar for more.
HC4417X Ch= 6R2AXT; Canadian Admiral Co. (ID = 2255009) R-Player
Canadian Admiral Co.: HC4417X Ch= 6R2AXT [R-Player] ID = 2255009 709x727
Select picture or schematic to display from thumbnails on the right and click for download.
For model HC4417X Ch= 6R2AXT, Canadian Admiral Co. Ltd; Long Branch, Ont.:

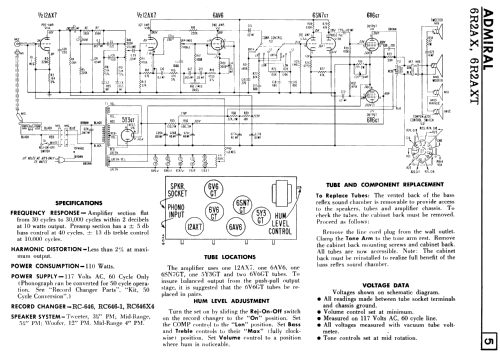

From RCC manual.

Country:  Canada
Manufacturer / Brand:  Canadian Admiral Co. Ltd; Long Branch, Ont.
Year: 1957 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 6: 12AX7 6AV6 6SN7 6V6GT 6V6GT 5Y3GT
Main principle Audio-Amplification
Wave bands - without
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: HC4417X Ch= 6R2AXT - Canadian Admiral Co. Ltd; Long
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

The Canadian Admiral model HC4417X is a 6-tube record changer console. Equipped with a 3.5 inch tweeter, 4 inch mid range, 5.25 inch mid range and a 12 inch woofer. Amplifier is rated 30 Hz to 30 kHz. Has bass and treble controls. For 60 Hz. Phonograph can be modified for 50 Hz with optional accessory kit.

Model Colour
HC4415X Walnut
HC4416X Mahagany
HC4417X Blond
Literature/Schematics (1) Radio College of Canada (RCC) (1957 Supplement 41)

Model page created by Tom Seeger. See "Data change" for further contributors.
