• Country
• Canada

• Manufacturer / Brand
• Canadian Westinghouse, Hamilton

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 153901

• • alternative name: Westinghouse Canada

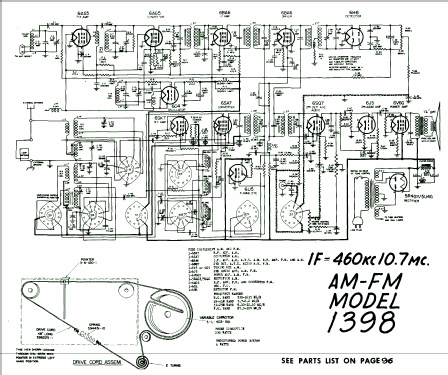

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6AG5 6C4 6AG5 6BA6 6U5 6SK7 6SA7 6BA6 6H6 6SQ7 6J5 6V6G 5R4GY or 5U4G

• Main principle
• Superhet with RF-stage; ZF/IF 10700 / 460 kHz

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• from Radiomuseum.org
• Model: 1398 - Canadian Westinghouse,

• Notes
• Built in loop antenna.

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)

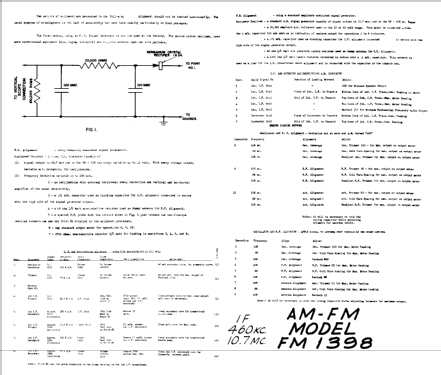

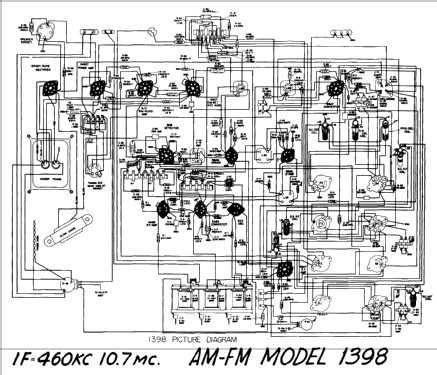

• Westinghouse supplement # 20 volume-5 part-1 page 92, 93, 94, 95

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.

• Other Models

• Here you find 384 models, 172 with images and 357 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
