- Country
- Canada
- Manufacturer / Brand
- Canadian Westinghouse, Hamilton
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 153738
-
- alternative name: Westinghouse Canada
From eBay seller
From eBay seller
From an eBay seller
This label is inside top of cabinet.
Original colour; cast-in, not painted.
From T.Eatons Fall/Winter Catalog 1948/49

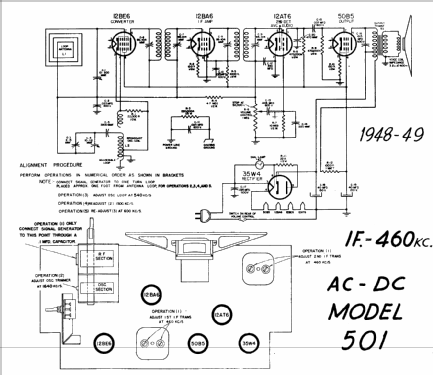

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 25-60 Hz; 30 VA; 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 3.3 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 501 - Canadian Westinghouse,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 9 x 5.75 x 6 inch / 229 x 146 x 152 mm
- Notes
-
The unique cabinet design allows it to be hung against a wall by its rear panel hooks, or stood vertically or horizontally on a table. Originally only available in walnut or ivory colour.
Built in loop antenna.
- Price in first year of sale
- 35.95 $
- Circuit diagram reference
- Radio College of Canada
- Literature/Schematics (1)
- Westinghouse page 135
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
