- Country
- Canada
- Manufacturer / Brand
- Canadian Westinghouse, Hamilton
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 153919
-
- alternative name: Westinghouse Canada
From a Canadian Kijiji advertisement.
From a Canadian Kijiji advertisement.
From a Canadian Kijiji advertisement.

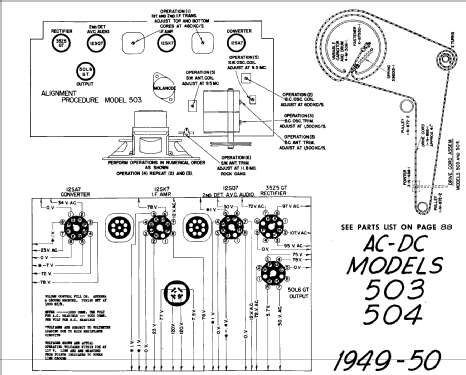

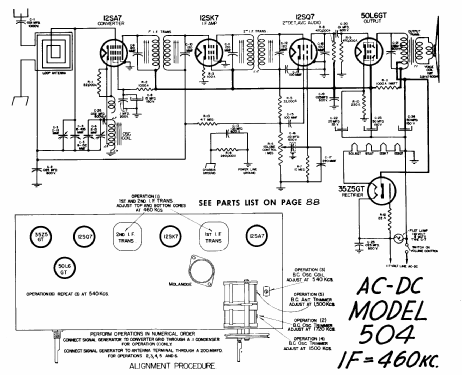

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 0.6 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 504 - Canadian Westinghouse,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 17.5 x 9 x 7.5 inch / 445 x 229 x 191 mm
- Notes
- Built in loop antenna.
- Circuit diagram reference
- Radio College of Canada
- Literature/Schematics (1)
- Westinghouse supplement #20 volume-5 part-1 page 82, 83
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
