- Country
- Canada
- Manufacturer / Brand
- Canadian Westinghouse, Hamilton
- Year
- 1925 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 192452
-
- alternative name: Westinghouse Canada

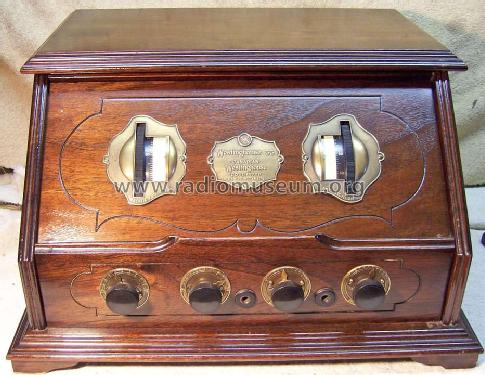

Front

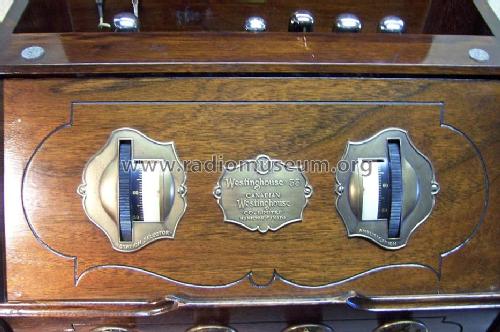

Front Close-Up, Maker's Name

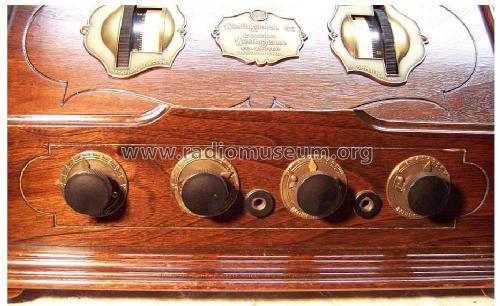

Close-Up of Dial Escutcheons and Knobs

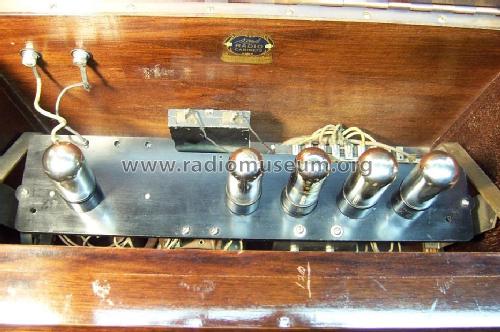

Inside

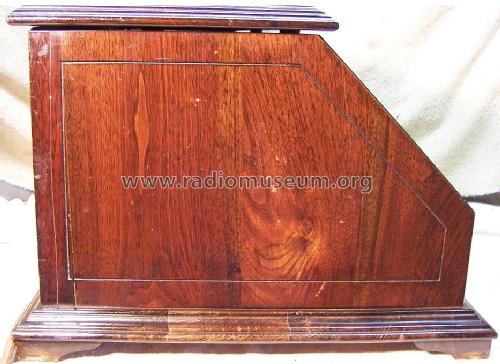

End View 1

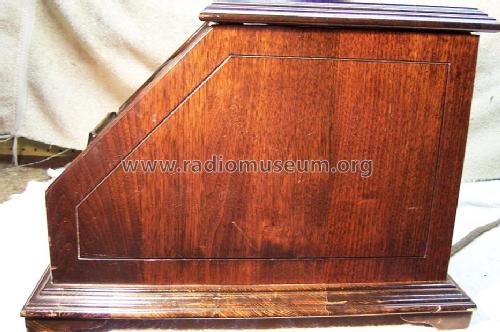

End View 2

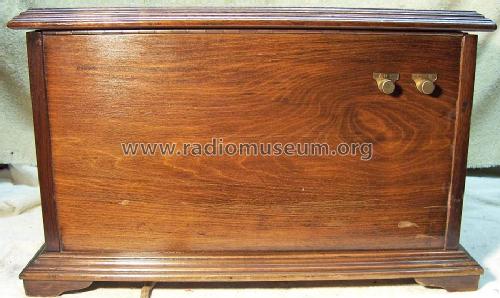

Back of Radio

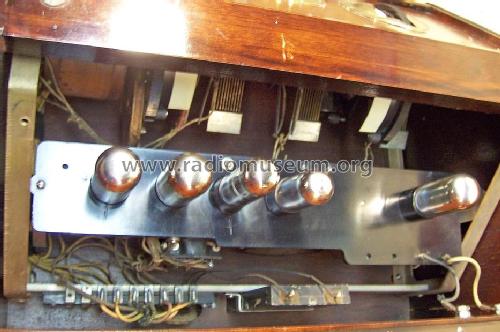

Inside View of Tubes
- Number of Tubes
- 5
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: 55 - Canadian Westinghouse,
- Shape
- Tablemodel, slant panel.
- Dimensions (WHD)
- 19 x 11.5 x 16 inch / 483 x 292 x 406 mm
- Source of data
- - - Data from my own collection
- Circuit diagram reference
- Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
- Author
- Model page created by Dave McClellan. See "Data change" for further contributors.
