551-A

551-A ; Canadian (ID = 603182) Radio
551-A ; Canadian (ID = 1870303) Radio 551-A ; Canadian (ID = 2220436) Radio
Use red slider bar for more.

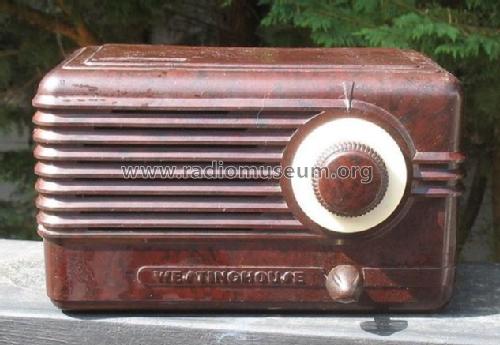

551-A ; Canadian (ID = 1870303) Radio
Canadian: 551-A [Radio] ID = 1870303 633x438
Select picture or schematic to display from thumbnails on the right and click for download.
For model 551-A, Canadian Westinghouse, Hamilton:
Picture courtesy eBay seller casionoman3112.

Country:  Canada
Manufacturer / Brand:  Canadian Westinghouse, Hamilton
alternative name

Westinghouse Canada
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12A8GT 12K7GT 12Q7GT 35L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 551-A - Canadian Westinghouse,
Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Westinghouse page 78

Model page created by Dirk Taekels. See "Data change" for further contributors.
