560-B

560-B ; Canadian (ID = 604908) Radio
560-B ; Canadian (ID = 2432601) Radio 560-B ; Canadian (ID = 2432613) Radio
560-B ; Canadian (ID = 2432606) Radio 560-B ; Canadian (ID = 2432614) Radio
560-B ; Canadian (ID = 2432612) Radio
Use red slider bar for more.
560-B ; Canadian (ID = 2432601) Radio
Canadian: 560-B [Radio] ID = 2432601 1339x828
Select picture or schematic to display from thumbnails on the right and click for download.
For model 560-B, Canadian Westinghouse, Hamilton:
Westinghouse 560B front view. I have taken this picture of my radio.

Country:  Canada
Manufacturer / Brand:  Canadian Westinghouse, Hamilton
alternative name

Westinghouse Canada
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 2A7 56 2B7 2A5 80
Main principle Super-Heterodyne (Super in general); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 560-B - Canadian Westinghouse,

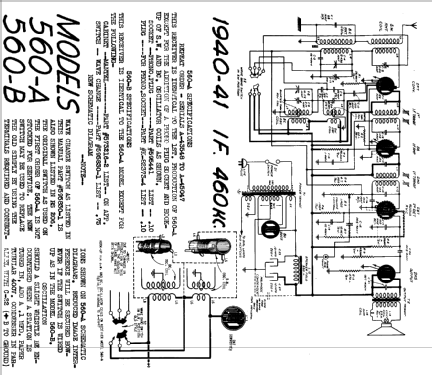

Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Westinghouse page 101

Model page created by Dirk Taekels. See "Data change" for further contributors.



All listed radios etc. from Canadian Westinghouse, Hamilton
Here you find 353 models, 143 with images and 325 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
