- Country
- Canada
- Manufacturer / Brand
- Canadian Westinghouse, Hamilton
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 154138
-
- alternative name: Westinghouse Canada

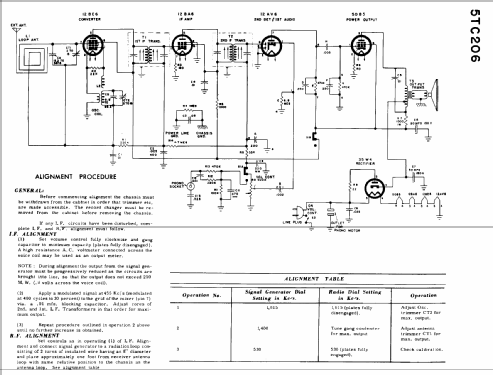

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 5TC206 - Canadian Westinghouse,
- Notes
- Built in loop antenna.
- Circuit diagram reference
- Radio College of Canada
- Literature/Schematics (1)
- Westinghouse supplement No.29 page 95, 96
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
