Continental 604

Continental 604 ; Canadian (ID = 607216) Radio

Continental 604 ; Canadian (ID = 607217) Radio

Continental 604 ; Canadian (ID = 607218) Radio

Continental 604 ; Canadian (ID = 1618755) Radio
Continental 604 ; Canadian (ID = 1597981) Radio Continental 604 ; Canadian (ID = 1625786) Radio
Continental 604 ; Canadian (ID = 1597984) Radio Continental 604 ; Canadian (ID = 1597986) Radio
Continental 604 ; Canadian (ID = 1597987) Radio Continental 604 ; Canadian (ID = 1597988) Radio
Continental 604 ; Canadian (ID = 1597989) Radio Continental 604 ; Canadian (ID = 1597990) Radio
Continental 604 ; Canadian (ID = 1625787) Radio Continental 604 ; Canadian (ID = 1625788) Radio
Use red slider bar for more.
Continental 604 ; Canadian (ID = 1597981) Radio
Canadian: Continental 604 [Radio] ID = 1597981 933x600
Select picture or schematic to display from thumbnails on the right and click for download.

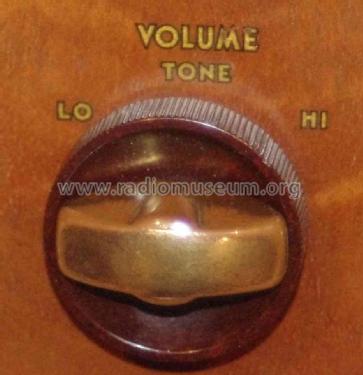

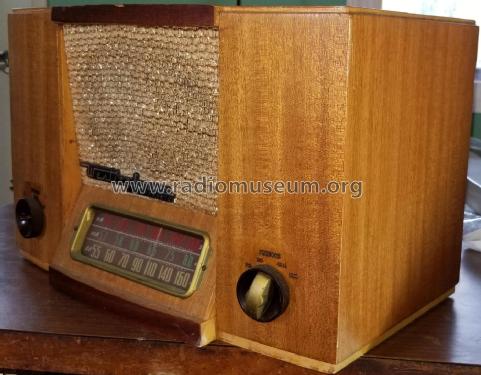

For model Continental 604, Canadian Westinghouse, Hamilton:

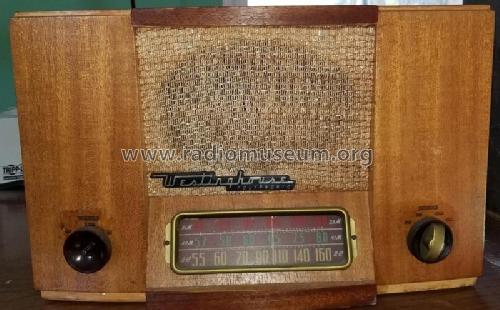

Direct front view.

Country:  Canada
Manufacturer / Brand:  Canadian Westinghouse, Hamilton
alternative name

Westinghouse Canada
Year: 1948–1950 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SK7 6SA7 6SK7 6SQ7 6K6GT 6X5GT
Main principle Superhet with RF-stage; ZF/IF 460 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 inch = 12.7 cm
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Continental 604 - Canadian Westinghouse,
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 390 x 244 x 235 mm / 15.4 x 9.6 x 9.3 inch
Notes

Built in loop antenna.

Depth is taken from the back to the furthest part of the bowed front edge.

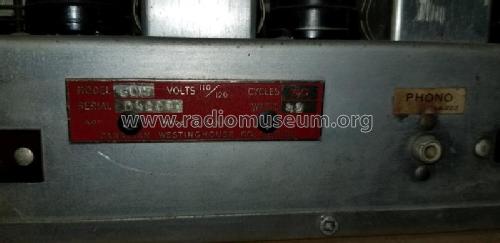

Rear panel provides a phono (mono) input and a 2-prong power socket for a turntable.  Band/Station selector knob allows user to choose between PH (Phono), BC, 49M and 31M.

Unit comes with full schematic attached to the inside of the chassis.

Speaker is 5" x 7" oval.

Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Westinghouse supplement #20 volume-5 part-1 page 84, 85, 86

Model page created by Dirk Taekels. See "Data change" for further contributors.
