• Year
  • 1943 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 245342
    • alternative name: Westinghouse Canada

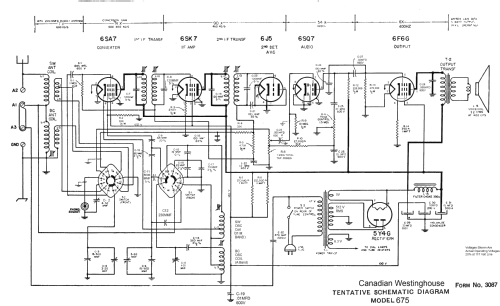

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 5 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 675 - Canadian Westinghouse,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 14.5 x 10.75 x 8.75 inch / 368 x 273 x 222 mm
  • Notes
  • BC Band 0.55 - 1.7 MHz.
    31M Band  9.4 - 9.7 MHz.
    SW Band 6.0 M - 18.0 Mhz

  • Source of data
  • -- Schematic
  • Author
  • Model page created by Martin Innes. See "Data change" for further contributors.
