• Year
  • 1957 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 241656
    • alternative name: Westinghouse Canada

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 0
  • Valves / Tubes
  • or or
  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 5 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1 x 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.25 inch = 8.3 cm
  • Power out
  • 0.18 W (undistorted)
  • Material

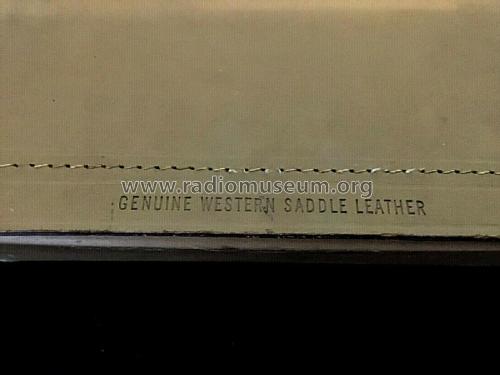

  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Transistor 6PT2 - Canadian Westinghouse,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 8.9 x 6.2 x 3 inch / 226 x 157 x 76 mm
  • Mentioned in
  • - - Manufacturers Literature
  • Author
  • Model page created by Daniel Rosha. See "Data change" for further contributors.
