Cordless Transistor 6PT4

Cordless Transistor 6PT4; Canadian (ID = 2348040) Radio

Cordless Transistor 6PT4; Canadian (ID = 2348041) Radio
Cordless Transistor 6PT4; Canadian (ID = 2285577) Radio Cordless Transistor 6PT4; Canadian (ID = 2285578) Radio
Cordless Transistor 6PT4; Canadian (ID = 2285576) Radio Cordless Transistor 6PT4; Canadian (ID = 2285579) Radio

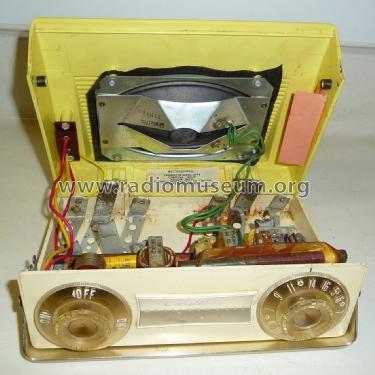

Cordless Transistor 6PT4; Canadian (ID = 2285580) Radio Cordless Transistor 6PT4; Canadian (ID = 2285581) Radio
Use red slider bar for more.
Cordless Transistor 6PT4; Canadian (ID = 2285577) Radio
Canadian: Cordless Transistor 6PT4 [Radio] ID = 2285577 1400x708
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cordless Transistor 6PT4, Canadian Westinghouse, Hamilton:
ebay.com 362406232969 seller rustytinman

Country:  Canada
Manufacturer / Brand:  Canadian Westinghouse, Hamilton
alternative name

Westinghouse Canada
Year: 1958 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2N255 2N253 2N254 2N402 2N59 2N59
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / "D" 6 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Cordless Transistor 6PT4 - Canadian Westinghouse,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 9 x 6.5 x 3 inch / 229 x 165 x 76 mm
Literature/Schematics (1) Radio College of Canada (RCC) (Supplement 45)

Model page created by Aldo Andreani. See "Data change" for further contributors.
