CR523 Ch= 787L045D01

CR523 Ch= 787L045D01; Canadian (ID = 2575496) Radio
Use red slider bar for more.
CR523 Ch= 787L045D01; Canadian (ID = 2575496) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Canada
Manufacturer / Brand:  Canadian Westinghouse, Hamilton
alternative name

Westinghouse Canada
Year: 1968 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 60Hz, 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: CR523 Ch= 787L045D01 - Canadian Westinghouse,
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Notes

The Westinghouse model CR523 is a 6-transistor AM clock radio.

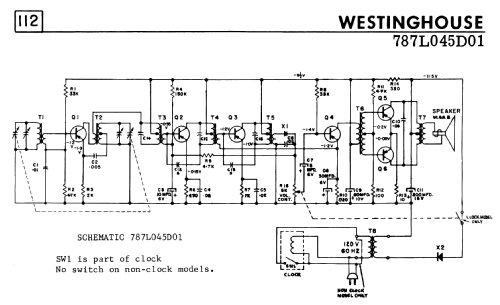

Literature/Schematics (1) Radio College of Canada (RCC) (1969 Supplement 103)
