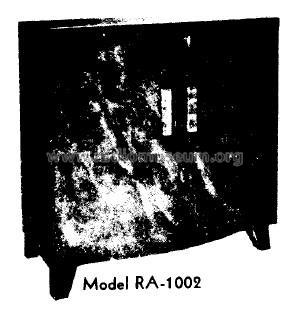

Canadian: RA-1002 [Radio] ID = 2146101 293x312
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA-1002, Canadian Westinghouse, Hamilton:
From RCC supplements.

Country:  Canada
Manufacturer / Brand:  Canadian Westinghouse, Hamilton
alternative name

Westinghouse Canada
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: 6BA6 12AT7 6BA6 6BA6 6AL5 6AV6 6AV6 6K6GT 6K6GT 5R4GY
Main principle Superhet with RF-stage; ZF/IF 10700 / 455 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out 7 W (unknown quality)
from Radiomuseum.org Model: RA-1002 - Canadian Westinghouse,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 32 x 32 x 18 inch / 813 x 813 x 457 mm
Notes Record Changer model VM 950. Built in loop antenna.
Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Westinghouse supplement No. 26 page 85, 87, 88, 89, 90, 91, 92, 93

Model page created by Dirk Taekels. See "Data change" for further contributors.
