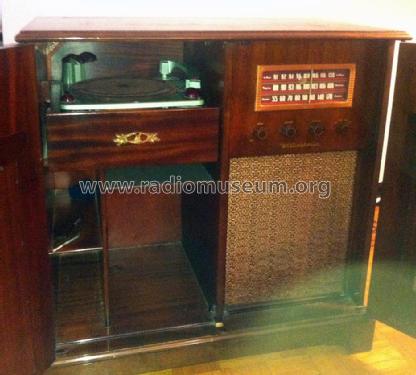

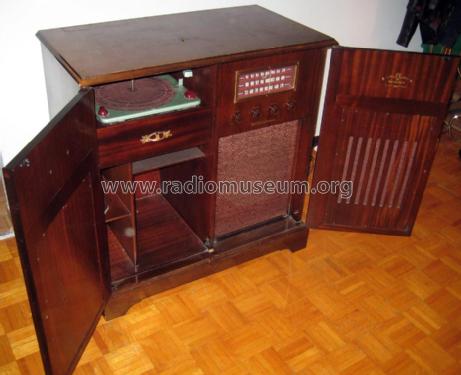

Canadian: RA-1202 [Radio] ID = 1412661 933x1030
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA-1202, Canadian Westinghouse, Hamilton:
By courtesy of guest Bryan, Ontario, Canada.

Country:  Canada
Manufacturer / Brand:  Canadian Westinghouse, Hamilton
alternative name

Westinghouse Canada
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 13: 6BA6 6AG5 6BA6 6BA6 6U5 6AL5 6BE6 6AT6 6AT6 6K6GT 6K6GT 6SC7 5R4GY
Main principle Superhet with RF-stage; ZF/IF 10700 / 460 kHz
Tuned circuits 7 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out 7 W (unknown quality)
from Radiomuseum.org Model: RA-1202 - Canadian Westinghouse,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 33 x 34 x 18 inch / 838 x 864 x 457 mm
Notes

Built in loop antenna for AM,FM.

Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Westinghouse supplement #21 volume-5 part-2 page 92, 93, 94, 95

Model page created by Dirk Taekels. See "Data change" for further contributors.
