• Country
• Canada

• Manufacturer / Brand
• Canadian Westinghouse, Hamilton

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 154010

• • alternative name: Westinghouse Canada

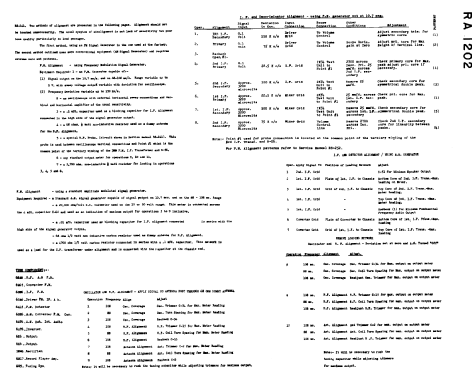

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• 6BA6 6AG5 6BA6 6BA6 6U5 6AL5 6BE6 6AT6 6K6GT 6K6GT 6SC7 5R4GY

• Main principle
• Superhet with RF-stage; ZF/IF 10700 / 460 kHz

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm

• Power out
• 7 W (unknown quality)

• from Radiomuseum.org
• Model: RA-1303 - Canadian Westinghouse,

• Notes
• "Similar circuitry as for RA-1202 as per index..." Built in loop antenna for AM,FM.

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Westinghouse supplement # 21 volume5 part-2 page 92, 93, 94,95

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
