RA-603

RA-603 ; Canadian (ID = 606365) Radio

RA-603 ; Canadian (ID = 606366) Radio

RA-603 ; Canadian (ID = 606367) Radio
Use red slider bar for more.
RA-603 ; Canadian (ID = 606365) Radio

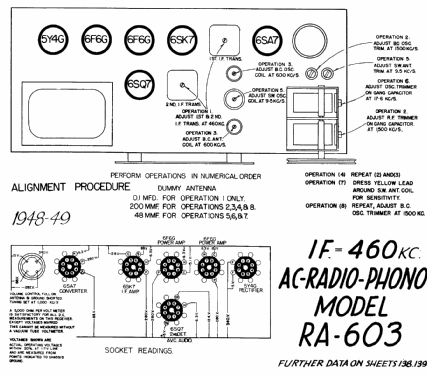

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Canada
Manufacturer / Brand:  Canadian Westinghouse, Hamilton
alternative name

Westinghouse Canada
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SA7 6SK7 6SQ7 6F6G 6F6G 5Y4G
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: RA-603 - Canadian Westinghouse,
Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Westinghouse page 138, 139, 140

Model page created by Dirk Taekels. See "Data change" for further contributors.
