RA-607

RA-607 ; Canadian (ID = 606122) Radio
RA-607 ; Canadian (ID = 1902030) Radio RA-607 ; Canadian (ID = 1902031) Radio
RA-607 ; Canadian (ID = 1902032) Radio
Use red slider bar for more.
RA-607 ; Canadian (ID = 1902030) Radio
Canadian: RA-607 [Radio] ID = 1902030 800x491
Select picture or schematic to display from thumbnails on the right and click for download.

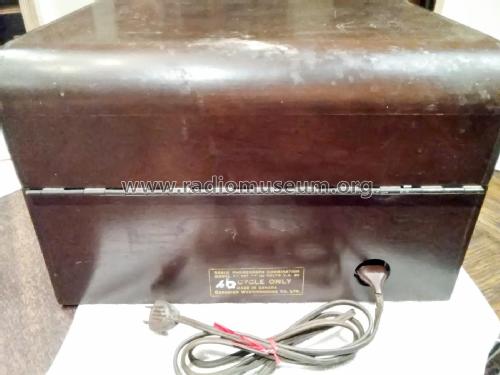

For model RA-607, Canadian Westinghouse, Hamilton:
From a Canadian Kijiji advertisement.

Country:  Canada
Manufacturer / Brand:  Canadian Westinghouse, Hamilton
alternative name

Westinghouse Canada
Year: 1947/1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SA7 6SF7 6SC7 25L6GT 25L6GT 25Z6GT
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RA-607 - Canadian Westinghouse,
Notes Built in loop antenna.
Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Westinghouse page 131

Model page created by Dirk Taekels. See "Data change" for further contributors.
