RA-608-2

RA-608-2 ; Canadian (ID = 607219) Radio

RA-608-2 ; Canadian (ID = 607220) Radio
Use red slider bar for more.
RA-608-2 ; Canadian (ID = 607219) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Canada
Manufacturer / Brand:  Canadian Westinghouse, Hamilton
alternative name

Westinghouse Canada
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6SA7 6SK7 6SQ7 6F6G 6F6G 5Y3GT
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RA-608-2 - Canadian Westinghouse,
Notes Built in loop antenna.

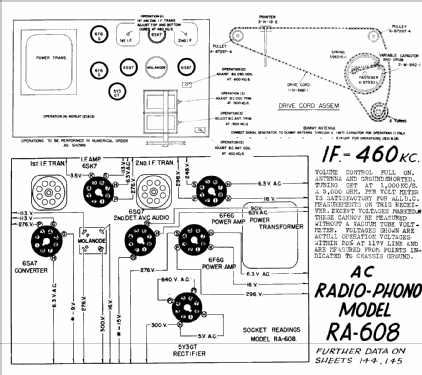

Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Westinghouse supplement #20 volume-5 part-1 page 87
