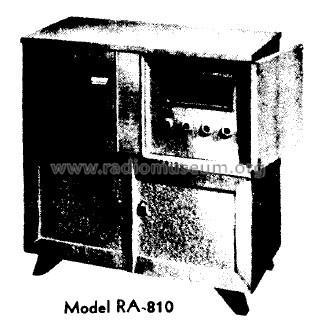

Canadian: RA-810 [Radio] ID = 2146100 319x335
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA-810, Canadian Westinghouse, Hamilton:
From RCC supplements.

Country:  Canada
Manufacturer / Brand:  Canadian Westinghouse, Hamilton
alternative name

Westinghouse Canada
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6BA6 12AT7 6BA6 6BA6 6AV6 6AL5 6K6GT 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 10700 / 455 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: RA-810 - Canadian Westinghouse,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 29 x 30.5 x 16 inch / 737 x 775 x 406 mm
Notes Record Changer model 100. Built in loop antenna.
Circuit diagram reference Radio College of Canada
Literature/Schematics (1) Westinghouse supplement No. 26 page 84, 87, 88, 89, 90, 91, 92, 93

Model page created by Dirk Taekels. See "Data change" for further contributors.
