Radiola IIIA

Radiola IIIA; Canadian (ID = 2604603) Radio Radiola IIIA; Canadian (ID = 2604604) Radio

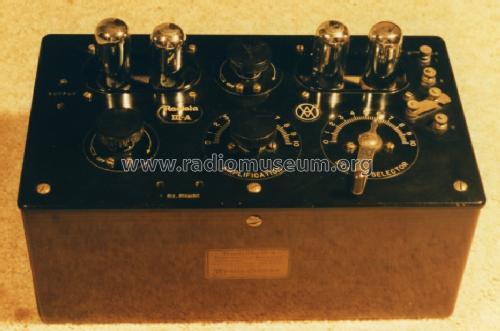

Radiola IIIA; Canadian (ID = 2604605) Radio Radiola IIIA; Canadian (ID = 1698932) Radio

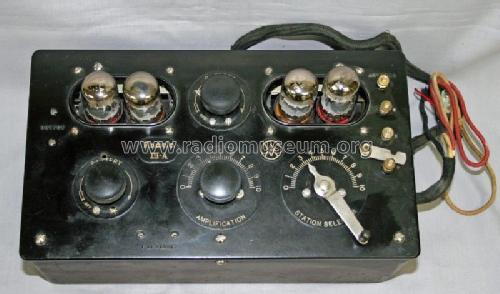

Radiola IIIA; Canadian (ID = 2222316) Radio Radiola IIIA; Canadian (ID = 2246094) Radio
Radiola IIIA; Canadian (ID = 2605129) Radio Radiola IIIA; Canadian (ID = 2605130) Radio

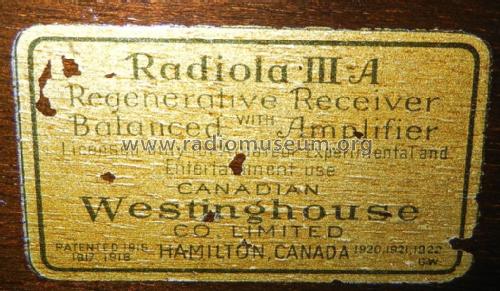

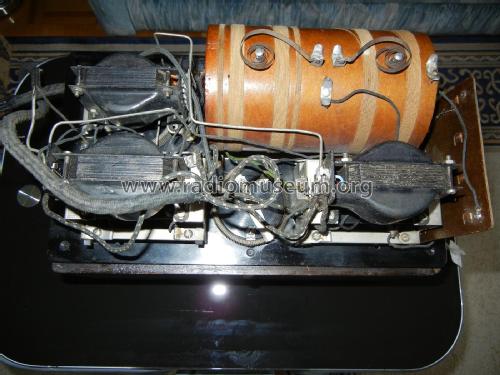

Radiola IIIA; Canadian (ID = 2605131) Radio Radiola IIIA; Canadian (ID = 2605132) Radio
Use red slider bar for more.

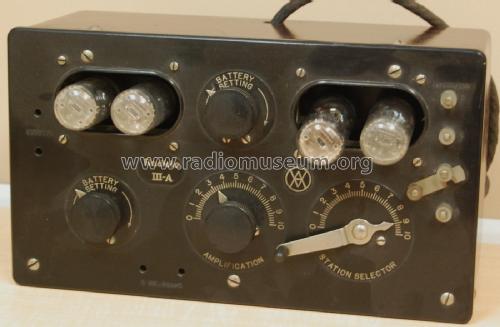

Radiola IIIA; Canadian (ID = 2604603) Radio
Canadian: Radiola IIIA [Radio] ID = 2604603 1400x917
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola IIIA, Canadian Westinghouse, Hamilton

Country:  Canada
Manufacturer / Brand:  Canadian Westinghouse, Hamilton
alternative name

Westinghouse Canada
Year: 1924 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: WD11 WD11 WD11 WD11
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1.5 & 20 & 80 & -4.5 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Radiola IIIA - Canadian Westinghouse,
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 304 x 150 x 172 mm / 12 x 5.9 x 6.8 inch
Notes

The Westinghouse Radiola IIIA built by Canadian Westinghouse, is the same as the RCA Radiola IIIA.

Model page created by Stuart Irwin. See "Data change" for further contributors.
