Capehart-Panamuse Sheraton Upright 22M2FM Ch= M-2-FM and A-10; Farnsworth (ID = 936049) Radio
Farnsworth: Capehart-Panamuse Sheraton Upright 22M2FM Ch= M-2-FM and A-10 [Radio] ID = 936049 933x868
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capehart-Panamuse Sheraton Upright 22M2FM Ch= M-2-FM and A-10, Farnsworth Television & Radio Corp. - see also Capehart:
M2-FM Front View from my collection.

Country:  United States of America (USA)
Manufacturer / Brand:  Farnsworth Television & Radio Corp. - see also Capehart
Year: 1941/1942 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 20: 6SK7 6J5 6SA7 6SG7 6AF6G 6J5 6J5 6SG7 6SJ7 6H6 6Q7 6R7 6C8G 6V6G 6V6G 6V6G 6V6G 5Y3G 5Y3G 5Y3G
Main principle Super-Heterodyne (Super in general); ZF/IF 455/4300 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker 2 Loudspeakers / Ø 12 inch = 30.5 cm
Power out 20 W (unknown quality)
from Radiomuseum.org Model: Capehart-Panamuse Sheraton Upright 22M2FM Ch= M-2-FM and A-10 - Farnsworth Television & Radio
Material Wooden case
Shape Console with Push Buttons.
Notes

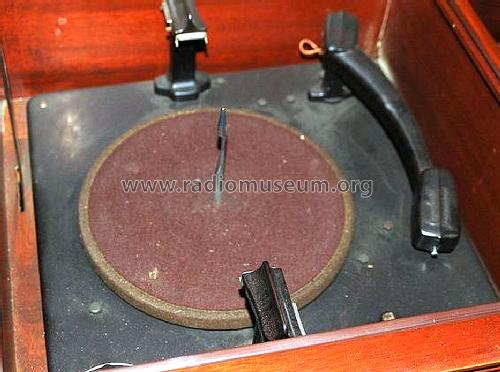

The model Capehart-Panamuse Sheraton Upright 22M-2 exists for AM only or combined with low band FM reception. This chassis M-2-FM is with FM and has 5 tubes more than the AM chassis. The M-2-FM receives BB, SW, Band spread SW and FM. See details and summaries in this common text for Capehart Radio-Phonographs. Post 3 is specific for this last pre war model family and the changer used.

The AM-FM tuner chassis M-2 FM has 11 tubes: 6SK7 RF, 6J5 oscillator, 6SA7 converter, 6SG7 1st IF, 6AF6G tuning eye, 6J5 tuning eye amp, 6J5 tuning eye amp 2, 6SG7 2nd IF FM, 6SJ7 limiter, 6H6 discriminator, 6Q7 det + 1st audio. Added is the A-10 amplifier with 9 tubes: 6R7 phase inverter, 6C8G duo driver, 4 x 6V6G and 3 x 5Y3G. Total is 20 tubes, 20 watts output. Two Jensen 12" speakers. See Rider's Capehart-Farnsworth page 20-1 to 20-16 for the tuners and amplifiers.

Collectors' prices
Mentioned in Rider's Perpetual, Volume 20 = covering 1950 (Capehart, series M-2 and A-10)
