• Country
• United States of America (USA)

• Manufacturer / Brand
• Farnsworth Television & Radio Corp. - see also Capehart

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73052

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

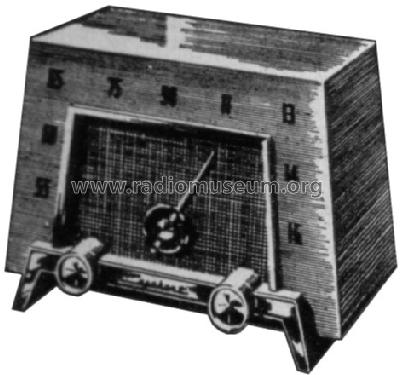

• Model: T-522 Ch= CR-76 - Farnsworth Television & Radio

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 9.5 x 6.5 x 5 inch / 241 x 165 x 127 mm

• Notes

• Note that Beitman vol 13, 1953, page 26 the model number is listed as T-S22, but is actually T-522. It is correct in the Beitman index. Also found in Collector's Guide to Antique Radios Fifth Edition. The model T-522X is very similar but includes a short wave band. You can see in small in the scale.

• Source of data
• Collector's Guide to Antique Radios (6th edition)

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before

• Mentioned in
• Machine Age to Jet Age II (Vol. 2)

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 13, 1953 (page 26)

• Author
• Model page created by Steven Sostrom. See "Data change" for further contributors.
