• Year
  • 1951 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 349166

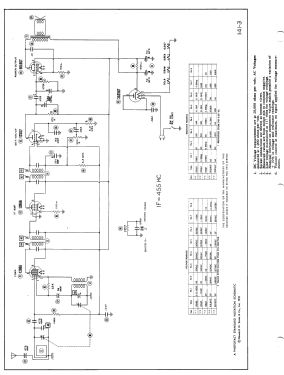

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117V = 110 -120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: T-30 - Capehart Corp.; Fort Wayne, IN
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Capehart model T-30 is an AC-DC operated superheterodyne receiver with loop antenna.

  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
