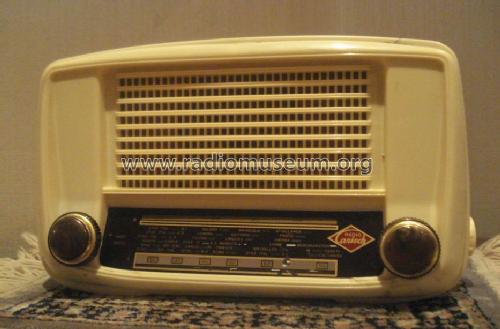

For model Bridge, Carisch Radio; Milano

Country:  Italy
Manufacturer / Brand:  Carisch Radio; Milano
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6AQ5 6AT6 6BA6 6BE6 6X4
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Bridge - Carisch Radio; Milano
Material Plastics (no bakelite or catalin)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 260 x 150 x 115 mm / 10.2 x 5.9 x 4.5 inch
Notes Presa Phono
Source of data - - Data from my own collection

Model page created by Giuseppe Duello. See "Data change" for further contributors.
