• Country
• Italy

• Manufacturer / Brand
• Carisch Radio; Milano

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156458

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EK2 or ECH3 EF9 6Q7 6K6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110;115; 140; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

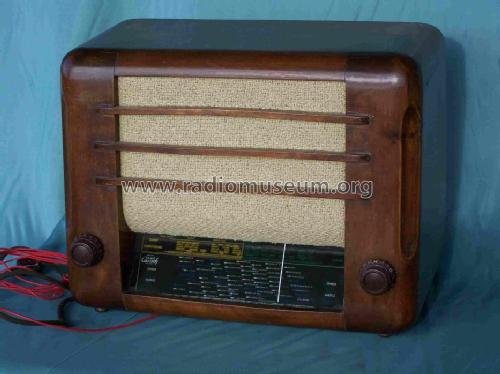

• Model: Veneto - Carisch Radio; Milano

• Shape
• Tablemodel, low profile (big size).

• Notes

• La scala parlante indica onde Medie, Corte e Cortissime.
  Tutti gli schemi indicano solo Medie e Corte.

• Source of data
• Guida Pratica Antique Radio III (2000)

• Literature/Schematics (1)
• Schemario degli Apparecchi Radio IV Edizione D.E. Ravalico

• Literature/Schematics (2)
• Schemario di apparecchi radio a valvole (II edizione, D.E. Ravalico - Hoepli - 1945)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.

• Other Models

• Here you find 55 models, 33 with images and 39 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Carisch Radio; Milano
