H209A

H209A; Castilla; Madrid (ID = 193228) Radio
H209A; Castilla; Madrid (ID = 540818) Radio H209A; Castilla; Madrid (ID = 540817) Radio
H209A; Castilla; Madrid (ID = 540816) Radio H209A; Castilla; Madrid (ID = 406670) Radio
Use red slider bar for more.
H209A; Castilla; Madrid (ID = 540818) Radio

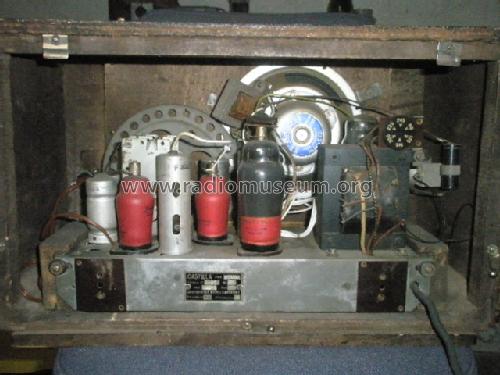

Castilla; Madrid: H209A [Radio] ID = 540818 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model H209A, Castilla; Madrid

Country:  Spain
Manufacturer / Brand:  Castilla; Madrid
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH4 ECH4 EBL1 AZ1
Main principle Superheterodyne (common); ZF/IF 450 kHz; 1 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 145, 200, 220, 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: H209A - Castilla; Madrid
Material Wooden case
Shape Tablemodel, low profile (big size).
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Literature/Schematics (1) -- Original-techn. papers.
