18M38 817-46

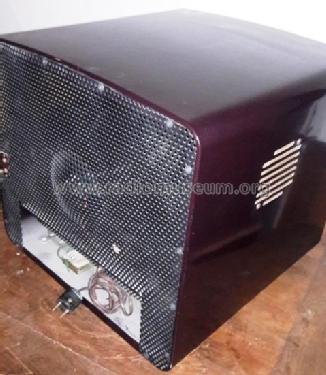

18M38 817-46; CBS-Columbia Inc.; (ID = 2311326) Television 18M38 817-46; CBS-Columbia Inc.; (ID = 2311327) Television
18M38 817-46; CBS-Columbia Inc.; (ID = 2311333) Television 18M38 817-46; CBS-Columbia Inc.; (ID = 2311334) Television
18M38 817-46; CBS-Columbia Inc.; (ID = 2311903) Television
Use red slider bar for more.
18M38 817-46; CBS-Columbia Inc.; (ID = 2311326) Television
CBS-Columbia Inc.;: 18M38 817-46 [Television] ID = 2311326 590x619
Select picture or schematic to display from thumbnails on the right and click for download.
For model 18M38 817-46, CBS-Columbia Inc.; New York, NY

Country:  United States of America (USA)
Manufacturer / Brand:  CBS-Columbia Inc.; New York, NY
alternative name

CBS Electronics || Columbia Phonographs || Columbia Records
Year: 1953 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 20: 6BZ7 6J6 6CB6 6CB6 6CB6 6AL5 12BH7 6U8 6AU6 6AL5 6AV6 6V6GT 12BZ7 12BH7 6AL5 12BH7 6BQ6GT 6W4GT 1AX2 5U4G 17HP4
Main principle Super-Heterodyne (Super in general)
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: 18M38 817-46 - CBS-Columbia Inc.; New York,
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 480 x 460 x 520 mm / 18.9 x 18.1 x 20.5 inch
Mentioned in Photofact Folder, Howard W. SAMS (Set 214, Folder 2)

Model page created by Aldo Canepa. See "Data change" for further contributors.



All listed radios etc. from CBS-Columbia Inc.; New York, NY
Here you find 303 models, 170 with images and 268 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
