23C49SM Ch= 921-94

CBS-Columbia Inc.; New York, NY

  • Year
  • 1956 ?
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 268244
    • alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 21
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

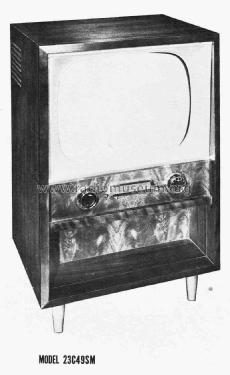

  • Model: 23C49SM Ch= 921-94 - CBS-Columbia Inc.; New York,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • CBS-Columbia  model 23C49SM is a 21” b/w TV with US standard VHF tuner channels 2 thru 13.Equipped with chassis 921-94, VHF tuner PC541497 and picture tube 21AMP4A.

  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
