CBS-Columbia Inc.;: C1168M [Radio] ID = 580693 798x700
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
CBS Electronics || Columbia Phonographs || Columbia Records | ||||
|---|---|---|---|---|---|
| Year: 1959 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 15: 6CY5 6EA8 6BA6 6BE6 6BA6 6BA6 6AL5 12AX7 12AX7 12AX7 6V6GT 6V6GT 6V6GT 6V6GT 5U4GB |
| Main principle | Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz |
|---|---|
| Wave bands | Broadcast (BC) and FM or UHF. |
| Details | Changer (Record changer) |
| Power type and voltage | Alternating Current supply (AC) / 110 - 120 Volt |
| Loudspeaker | 6 Loudspeakers |
| Power out | |
| from Radiomuseum.org | Model: C1168M - CBS-Columbia Inc.; New York, |
| Material | Wooden case |
| Shape | Console, Lowboy (legs < 50 %). |
| Notes | AC operated AM - FM tuner with stereo amplifier and 4 speed automatic record changer. Sams photofact set 500 folder 5 date 9-60 features the CBS Models C1168C, C1168M and C1168W as the same schematic. |

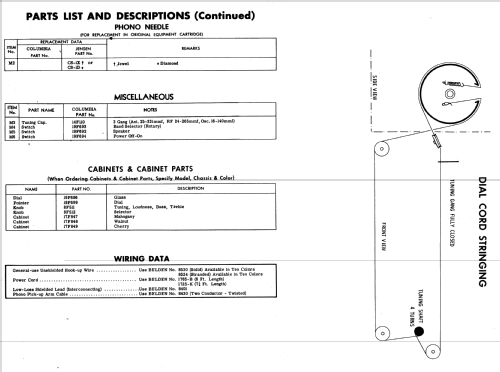

| Literature/Schematics (1) | Photofact Folder, Howard W. SAMS (Set 500 folder 5 date 9-60) |
