U22C07 Ch= 921-21
CBS-Columbia Inc.; New York, NY
- Country
- United States of America (USA)
- Manufacturer / Brand
- CBS-Columbia Inc.; New York, NY
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 333896
-
- alternative name: CBS Electronics || Columbia Phonographs || Columbia Records

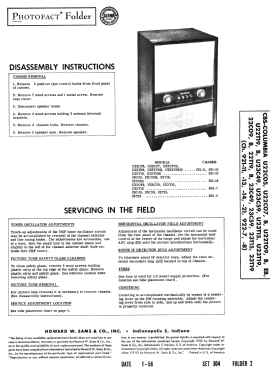

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- 6T4 6BZ7 6U8 6CB6 6CB6 6CB6 6AL5 12BH7 6U8 6AU6 6AL5 6AV6 6V6GT 12BZ7 12BH7 6AL5 12BH7 6CU6 6W4GT 1AX2 5AW4 21ZP4A
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: U22C07 Ch= 921-21 - CBS-Columbia Inc.; New York,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
CBS-Columbia model U22C07 is a 21” b/w TV with US standard VHF tuner channels 2 thru
13, and 14 thru 83 UHF. Equipped with chassis 921-21, VHF- UHF-tuner 69000611 and picture tube 21ZP4A.
