• Country
• Italy

• Manufacturer / Brand
• CEI, Controlli Elettronici Industriali; Bologna

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 146006

• • alternative name: Hermann
  • Brand: Selonyx

• Number of Transistors
• 6

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 2 x 4.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

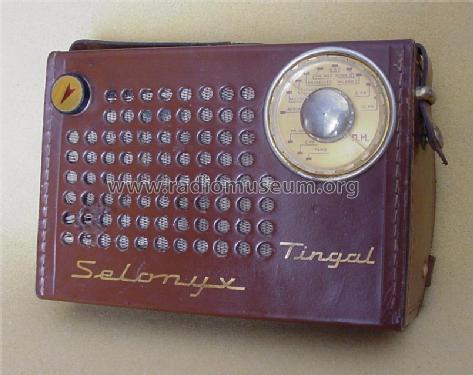

• Model: Selonyx Tingal - CEI, Controlli Elettronici

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 180 x 125 x 63 mm / 7.1 x 4.9 x 2.5 inch

• Notes

• Almost identical models are listed under Beta.

• Net weight (2.2 lb = 1 kg)
• 0.9 kg / 1 lb 15.7 oz (1.982 lb)

• Mentioned in
• Guida Pratica Transistor Radios (pag. 27)

• Literature/Schematics (1)
• Antique Radio Magazine n.42, March 2001, page 58 and n.123, Jan./Feb. 2015, page 38

• Author
• Model page created by Aldo Andreani. See "Data change" for further contributors.

• Other Models

• Here you find 13 models, 13 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
