For model Three Way Loudspeaker System Ditton 66 Series I (1), Celestion Radio (also brand); Kingston-on-Thames:

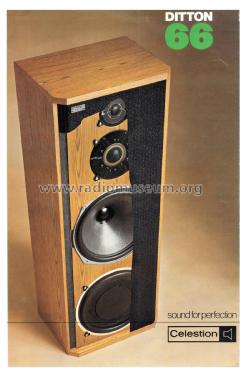

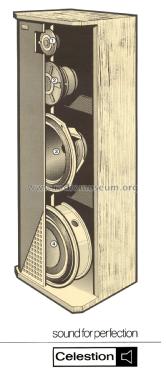

Celestion Sales Brochure

Country:  Great Britain (UK)
Manufacturer / Brand:  Celestion Radio (also brand); Kingston-on-Thames
Year: 1980 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Three Way Loudspeaker System Ditton 66 [Series I ] - Celestion Radio also brand;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 380 x 1000 x 290 mm / 15 x 39.4 x 11.4 inch
Notes

3-Way Speaker System Model Celestion Ditton 66 Series I (1).
Type: 3 way, 4 driver loudspeaker system
Frequency Response: 18Hz to 40kHz
Recommended Amplifier: 10 to 160 Watt
Crossover Frequency: 500, 5000Hz
Impedance: 4Ω
Sensitivity: 90dB
Drivers:
Sub Bass: 1 x cone
Bass: 1 x 12" cone

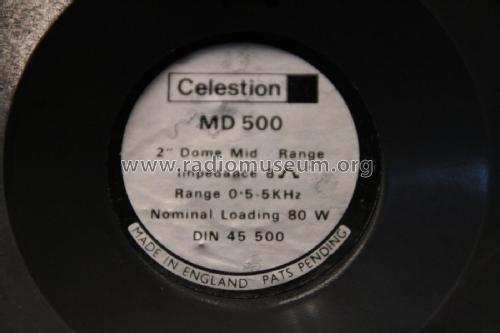

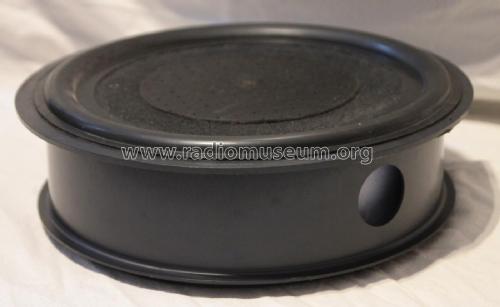

Midrange: 1 x 2.25" soft dome
Tweeter: 1 x HF2000
Enclosure: 75 litre
Finish: teak, walnut

Net weight (2.2 lb = 1 kg) 30 kg / 66 lb 1.3 oz (66.079 lb)
Mentioned in -- Original prospect or advert (Mr. Ditton Loudspeakers, Ditton)
Literature/Schematics (1) -- Original prospect or advert (Celestion Flyer)
