Generateur HF 923; Centrad; Annecy (ID = 2009322) Equipment
Centrad; Annecy: Generateur HF 923 [Equipment] ID = 2009322 900x597
Select picture or schematic to display from thumbnails on the right and click for download.
For model Generateur HF 923, Centrad; Annecy:
Collection privée - Patrice Schoser

Country:  France
Manufacturer / Brand:  Centrad; Annecy
Year: 1959 ? Category: Service- or Lab Equipment
Valves / Tubes 3: 6BQ7A 6BQ7A 6BQ7A
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 120-240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Generateur HF 923 - Centrad; Annecy
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 330 x 220 x 150 mm / 13 x 8.7 x 5.9 inch
Notes RF oscillator covering from 100KHz to 225 MHz in 5 steps plus 420 to 520 KHz. Audio AM modulation 800 Hz.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)

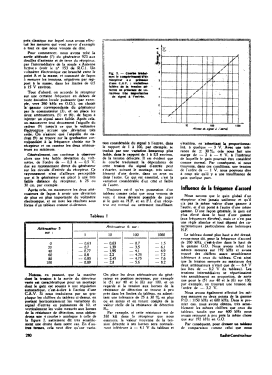

Literature/Schematics (1) Radio constructeur & dépaneur

Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
