117

117; Centrum-Radio, (ID = 15642) Radio
Use red slider bar for more.
117; Centrum-Radio, (ID = 15642) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Sweden
Manufacturer / Brand:  Centrum-Radio, Gylling & Co.; Stockholm
Brand

Gylling
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6J5 6SG7 6K7GT 6Q7GT 6U5 6V6GT 5Y3G
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: 117 - Centrum-Radio, Gylling & Co.;
Material Wooden case
Dimensions (WHD) 520 x 338 x 298 mm / 20.5 x 13.3 x 11.7 inch
Notes (Thali??)
Net weight (2.2 lb = 1 kg) 12.2 kg / 26 lb 14 oz (26.872 lb)
External source of data E. Erb 3-907007-36-0

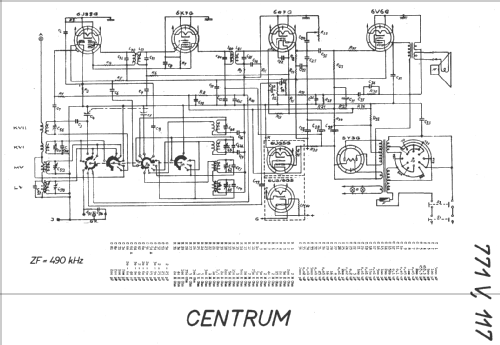

Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.


All listed radios etc. from Centrum-Radio, Gylling & Co.; Stockholm
Here you find 180 models, 132 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
