• Year
  • 1947 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 18146
    • Brand: Gylling

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 490 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

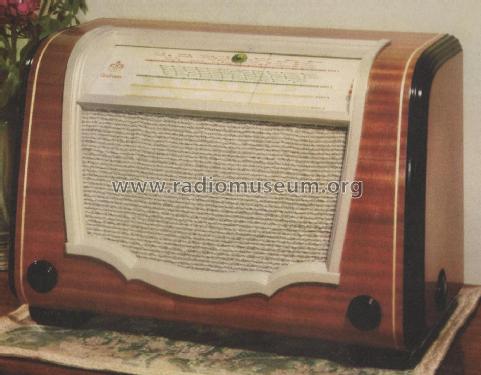

  • Model: 773V Typ 123 - Centrum-Radio, Gylling & Co.;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 580 x 370 x 290 mm / 22.8 x 14.6 x 11.4 inch
  • Notes
  • Siehe auch das Standgerät 774Vg Typ 123 mit eingebautem Plattenspieler.

  • Net weight (2.2 lb = 1 kg)
  • 14.2 kg / 31 lb 4.4 oz (31.278 lb)
  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.
  • Mentioned in
  • -- Original prospect or advert (Centrum Radio Katalog dated 1947)
  • Literature/Schematics (1)
  • -- Schematic
