Stradivarius FW45 Typ 15

Stradivarius FW45 Typ 15; Centrum-Radio, (ID = 2004336) Radio

Stradivarius FW45 Typ 15; Centrum-Radio, (ID = 2004337) Radio
Stradivarius FW45 Typ 15; Centrum-Radio, (ID = 2498515) Radio Stradivarius FW45 Typ 15; Centrum-Radio, (ID = 414833) Radio
Stradivarius FW45 Typ 15; Centrum-Radio, (ID = 414834) Radio Stradivarius FW45 Typ 15; Centrum-Radio, (ID = 414832) Radio
Stradivarius FW45 Typ 15; Centrum-Radio, (ID = 414835) Radio Stradivarius FW45 Typ 15; Centrum-Radio, (ID = 414837) Radio
Stradivarius FW45 Typ 15; Centrum-Radio, (ID = 418741) Radio Stradivarius FW45 Typ 15; Centrum-Radio, (ID = 418742) Radio
Stradivarius FW45 Typ 15; Centrum-Radio, (ID = 1298691) Radio Stradivarius FW45 Typ 15; Centrum-Radio, (ID = 1298692) Radio
Use red slider bar for more.
Stradivarius FW45 Typ 15; Centrum-Radio, (ID = 2498515) Radio
Centrum-Radio,: Stradivarius FW45 Typ 15 [Radio] ID = 2498515 1400x1439
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stradivarius FW45 Typ 15, Centrum-Radio, Gylling & Co.; Stockholm:
auctionet.com auction #576893 seller Gomér & Andresson Linköping

Country:  Sweden
Manufacturer / Brand:  Centrum-Radio, Gylling & Co.; Stockholm
Brand

Gylling
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 6B7 41 80
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100; 110; 120; 130; 140; 150; 210; 220; 230; 240; 250; 260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Stradivarius FW45 Typ 15 - Centrum-Radio, Gylling & Co.;
Material Wooden case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 335 x 345 x 240 mm / 13.2 x 13.6 x 9.4 inch
Notes

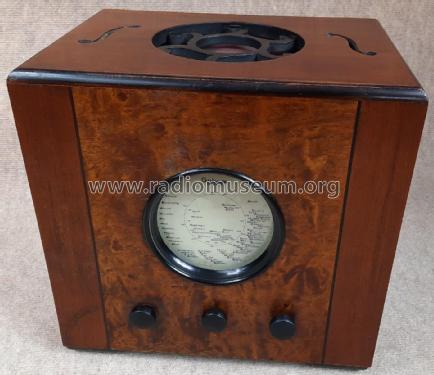

Speaker located horizontally in the top of the cabinet.

Model FU46 is the AC/DC version of this receiver.
Model FW35 uses the same chassis.

Price in first year of sale 295.00 SEK

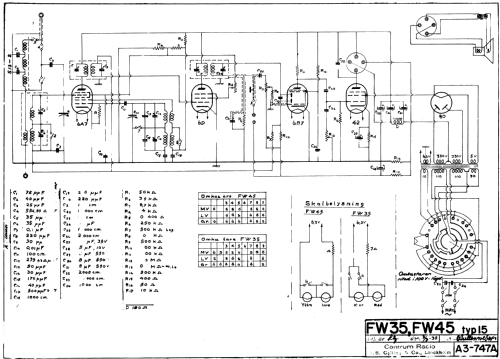

Source of data -- Schematic
Mentioned in -- Original prospect or advert (Brochure Saison 1936)

Model page created by Torbjörn Hansson. See "Data change" for further contributors.
