Stradivarius FU46

Stradivarius FU46; Centrum-Radio, (ID = 2592673) Radio Stradivarius FU46; Centrum-Radio, (ID = 2592674) Radio
Stradivarius FU46; Centrum-Radio, (ID = 2498927) Radio Stradivarius FU46; Centrum-Radio, (ID = 2498928) Radio
Use red slider bar for more.
Stradivarius FU46; Centrum-Radio, (ID = 2592673) Radio
Centrum-Radio,: Stradivarius FU46 [Radio] ID = 2592673 1300x1133
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stradivarius FU46, Centrum-Radio, Gylling & Co.; Stockholm:
Courtesy Dyrgripen Handelshus AB

Country:  Sweden
Manufacturer / Brand:  Centrum-Radio, Gylling & Co.; Stockholm
Brand

Gylling
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5:
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Stradivarius FU46 - Centrum-Radio, Gylling & Co.;
Material Wooden case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 335 x 345 x 240 mm / 13.2 x 13.6 x 9.4 inch
Notes

Speaker located horizontally in the top of the cabinet.

Model FW45 is the AC version of this receiver.

Price in first year of sale 295.00 SEK

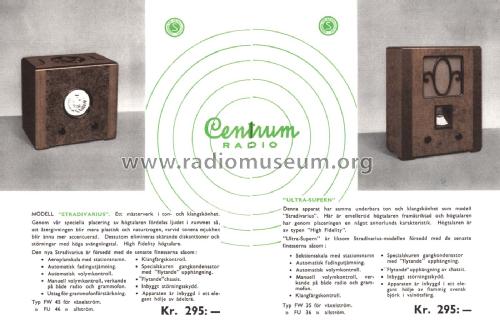

Mentioned in -- Original prospect or advert (Brochure Saison 1936)

Model page created by Mark Hippenstiel. See "Data change" for further contributors.



All listed radios etc. from Centrum-Radio, Gylling & Co.; Stockholm
Here you find 180 models, 132 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
