HU5

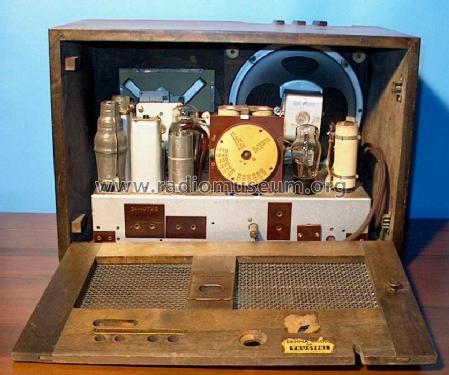

HU5; Centrum-Radio, (ID = 480629) Radio HU5; Centrum-Radio, (ID = 480630) Radio

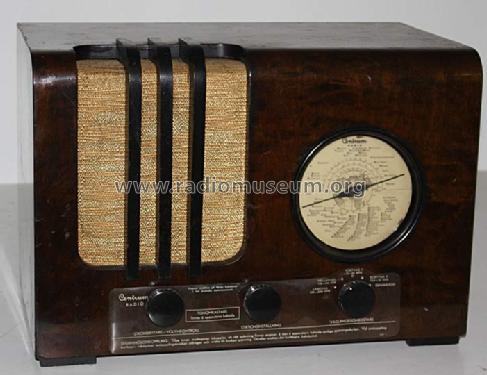

HU5; Centrum-Radio, (ID = 665664) Radio
Use red slider bar for more.
HU5; Centrum-Radio, (ID = 480629) Radio
Centrum-Radio,: HU5 [Radio] ID = 480629 899x655
Select picture or schematic to display from thumbnails on the right and click for download.
For model HU5, Centrum-Radio, Gylling & Co.; Stockholm

Country:  Sweden
Manufacturer / Brand:  Centrum-Radio, Gylling & Co.; Stockholm
Brand

Gylling
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 6Q7 25L6 25Z5
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage AC/DC-set / 100-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20.5 cm = 8.1 inch
Power out
from Radiomuseum.org Model: HU5 - Centrum-Radio, Gylling & Co.;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 300 x 270 mm / 16.9 x 11.8 x 10.6 inch

Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.



All listed radios etc. from Centrum-Radio, Gylling & Co.; Stockholm
Here you find 180 models, 132 with images and 61 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
