Transita S Ch= Nordmende E038

Transita S Ch= Nordmende E038; Centrum-Radio, (ID = 1291116) Radio Transita S Ch= Nordmende E038; Centrum-Radio, (ID = 1291120) Radio
Transita S Ch= Nordmende E038; Centrum-Radio, (ID = 1291118) Radio Transita S Ch= Nordmende E038; Centrum-Radio, (ID = 2589152) Radio
Transita S Ch= Nordmende E038; Centrum-Radio, (ID = 2589153) Radio Transita S Ch= Nordmende E038; Centrum-Radio, (ID = 2589154) Radio
Transita S Ch= Nordmende E038; Centrum-Radio, (ID = 2589155) Radio Transita S Ch= Nordmende E038; Centrum-Radio, (ID = 2589156) Radio
Transita S Ch= Nordmende E038; Centrum-Radio, (ID = 2589157) Radio Transita S Ch= Nordmende E038; Centrum-Radio, (ID = 2589158) Radio
Use red slider bar for more.

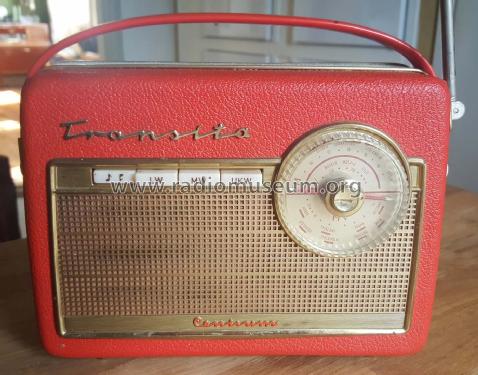

Transita S Ch= Nordmende E038; Centrum-Radio, (ID = 1291116) Radio
Centrum-Radio,: Transita S Ch= Nordmende E038 [Radio] ID = 1291116 900x683
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transita S Ch= Nordmende E038, Centrum-Radio, Gylling & Co.; Stockholm

Country:  Sweden
Manufacturer / Brand:  Centrum-Radio, Gylling & Co.; Stockholm
Brand

Gylling
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Transita S Ch= Nordmende E038 - Centrum-Radio, Gylling & Co.;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 168 x 82 mm / 9.1 x 6.6 x 3.2 inch
Notes

Centrum Transita S E038 ist von Nordmende Bremen für den schwedischen Markt hergestellt.

Vergleiche auch Nordmende Transita 2/608.

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

Model page created by Herbert Wieler. See "Data change" for further contributors.
