Transita Z080 Ch= 2/608; Nordmende, (ID = 2174910) Radio
Nordmende,: Transita Z080 Ch= 2/608 [Radio] ID = 2174910 1400x1050

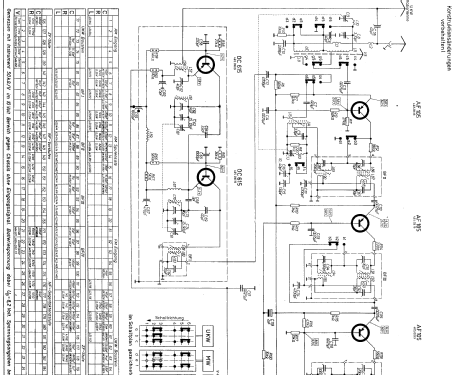

Select picture or schematic to display from thumbnails on the right and click for download.
For model Transita Z080 Ch= 2/608, Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

Country:  Germany
Manufacturer / Brand:  Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen
Year: 1961/1962 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: OC615 OC615 AF105 AF105 AF105 OC75 OC71 OC74 OC74 OA160 OA172 OA172
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage and/or dry batteries / 3R12: 2 x 4.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Transita Z080 Ch= 2/608 - Nordmende, Norddeutsche Mende-
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 168 x 82 mm / 9.1 x 6.6 x 3.2 inch
Notes

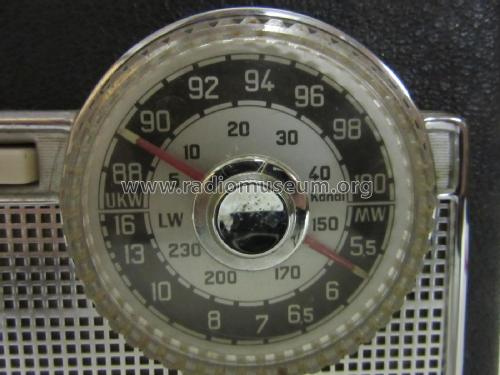

UKW: 86,7 - 100,5 MHz
MW: 515 - 1620 kHz
LW: 145 - 260 kHz

Zusätzliche Antennenbuchse für Autobetrieb

Siehe auch Philco T-905 Code 124, dieses Modell mit 2 Wellenbereichen

  • FM 88 - 108 MHz
  • AM 530 - 1620 kHz

wurde von Nordmende für Philco USA hergestellt.

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)
Price in first year of sale 238.00 DM
Source of data HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 1, Ernst Erb
Mentioned in -- Original-techn. papers.
