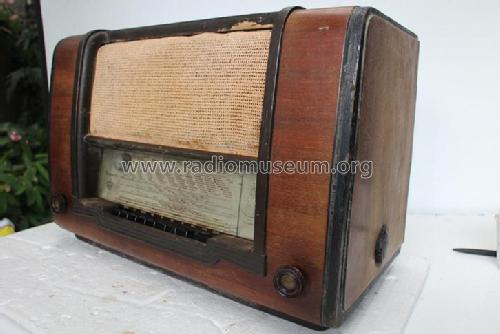

W77; Centrum-Radio, (ID = 1707484) Radio
Centrum-Radio,: W77 [Radio] ID = 1707484 726x485
Select picture or schematic to display from thumbnails on the right and click for download.
For model W77, Centrum-Radio, Gylling & Co.; Stockholm

Country:  Sweden
Manufacturer / Brand:  Centrum-Radio, Gylling & Co.; Stockholm
Brand

Gylling
Year: 1943 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6J8EG 6K7G 6Q7G 6K7G 6UG5G 6V6EG 5Y3G
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 115-245 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: W77 - Centrum-Radio, Gylling & Co.;
Material Wooden case
Dimensions (WHD) 560 x 375 x 290 mm / 22 x 14.8 x 11.4 inch
Notes 10 Tasten sz; 5 x KW
Net weight (2.2 lb = 1 kg) 17.5 kg / 38 lb 8.7 oz (38.546 lb)
Price in first year of sale 814.00 SFR
External source of data E. Erb 3-907007-36-0
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
